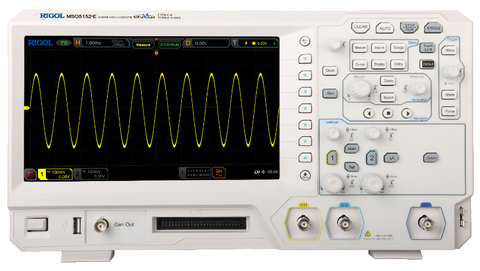

L' Oscilloscopio digitale MSO5152-E della serie MSO5000E integra 7 strumenti indipendenti in 1 .
Include un' oscilloscopio digitale , un analizzatore di stati logici , un analizzatore di spettro , un generatore di forme d'onda arbitrarie (opzione) , un voltmetro digitale , un misuratore di frequenza e totalizzatore , un analizzatore di protocollo (opzione).
Specifiche tecniche:
| Several modes | Digital Oscilloscope , Digital Voltmeter , Logic Analyzer , Arbitrary Waveform Generator (Option) , Spectrum Analyzer , High-precision Frequency Counter and Totalizer , Protocol Analyzer (Option) |
|
Bandwidth
|
150 MHz
|
|
Analog Channels
|
2 |
| Digital Channels | 16 (PLA2216 probe option is required to be ordered) |
|
Max. Sample Rate of Analog Channel
|
4 GSa/s (single-channel)
|
| Sampling Mode | Real-time sampling |
| Max Memory Depth Analog CHs |
100 Mpts (single-channel), 50 Mpts (all channels) |
| Max Memory Depth Digital CHs | 25 Mpts |
|
Waveform Acquisition Rate
|
≥300,000 wfms/s (Waveforms per Second)
|
| Max. Frames of Waveform Recording | 450.000 |
| LCD | 9-inch capacitive multi-touch screen |
| Display Resolution | 1024 x 600 |
| Hardware Mask Test | Standard |
|
Built-in Arbitrary Waveform Generator
|
25 MHz ( optional )
|
| Built-in Digital Voltmeter | standard |
|
Interface
|
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
|
|
Built-in Hardware Counter
|
6-digit frequency counter + totalizer
|
|
Search and Navigation
|
Standard supporting table display
|
|
Power Analysis
|
Built-in UPA (optional)
|
| Serial Protocol Analysis | RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, and MIL-STD-1553 |
| Waveform Color Persistance | standard |
