RSA6000 series is RIGOL's newly launched spectrum analyzer product. Its excellent performance in SFDR, phase noise, amplitude accuracy and test speed makes it applicable in various test scenarios such as spectrum analysis, real-time spectrum analysis, vector signal analysis, pulse analysis.
RSA6000 series real-time spectrum analyzer has a strong expansion capability, allowing you to build the test system or perform user-defined development via various digital and analog output interfaces. With its excellent performance and flexible configuration, it can meet your test demands in various application scenarios such as wireless communication, automobile electronics, Internet of Things (IoT), and etc.
The RSA6000 Series Real-Time Spectrum Analyzer is equipped with real-time analysis (RTSA) and swept analysis (GPSA) functions, and offers optional vector signal analysis application software (VSA), analog signal analysis application software (ADM), and EMI measurement application software (EMI), boasting excellent performance and specifications.
RSA6000 Series Technical Specifications

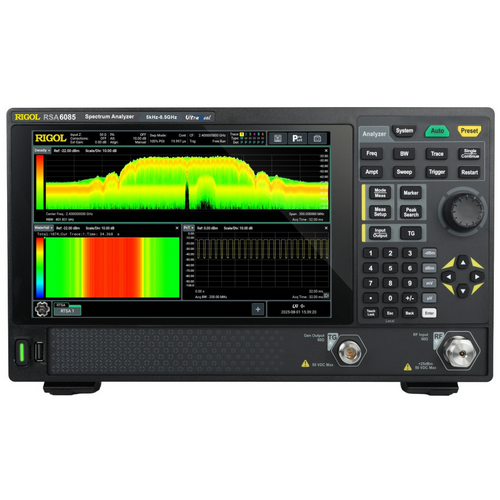

| Model | RSA6085 |
| Frequency Range | 5 kHz to 8.5 GHz |
| Max. Analysis Bandwidth | 80 MHz (Std.), 200 MHz (Opt.) |
| Max. Real-Time Bandwidth | 80 MHz (Std.), 200 MHz (Opt.) |
| 1 GHz Phase Noise | 10 kHz offset, <-108 dBc/Hz (typ.) |
| Displayed Average Noise Level (DANL), Normalized from 1 GHz to 1 Hz | -143 dBm (typ.), with PA off , -163 dBm (typ.), with PA on |
| RBW | 1 Hz to 10 MHz |
| VBW | 1 Hz to 10 MHz |
| Third-order Intercept (TOI) 1GHz | +15 dBm (typ.) |
| Amplitude Range | DANL to +25 dBm (single-tone) |

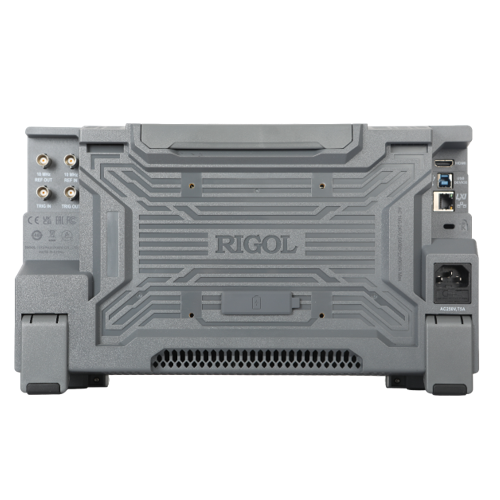

| I/O | LAN, USB, and HDMI |
| Screen | 10.1'' capacitive multi-touch screen |
| Programming Control Instruction Sets | Supports SCPI commands control, compatible with Keysight PXA series commands |
Product Features

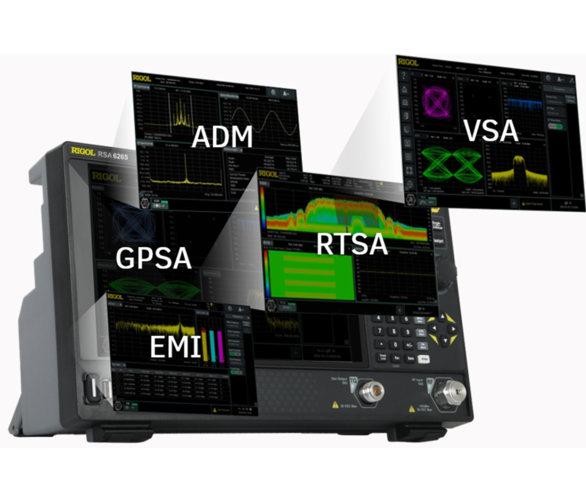

• Five working modes: GPSA, RTSA, VSA, EMI, and ADM
• Frequency range: 5 kHz to 26.5 GHz
• Excellent DANL (Displayed Average Noise Level)
• Good phase noise performance
• High-precision amplitude measurement error
• Multiple analysis bandwidth options
• Excellent SFDR
• Powerful real-time spectrum analysis function
• Display different types of measurement values in multi-pane windowing form
• Support USB, LAN, and HDMI interfaces
• Support standard SCPI instruction sets
Manuals
RSA6000_QuickGuide-EN_compressed
RSA6000-DataSheet-EN_compressed
RSA6000-UserGuide-EN_compressed
RSA6000_ProgrammingGuide_EN_compressed
RSA6000_PerformanceVerification-EN_compressed
VSA_ProgrammingGuide_EN__compressed
VSA-UserGuide-EN_compressed
