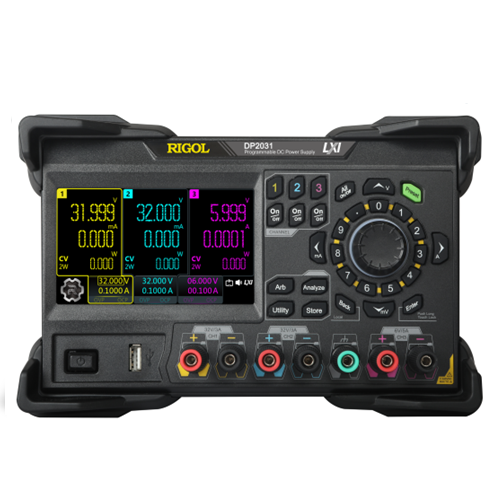

Alimentatore DC Rigol DP2031 222W 3 CH

  • In Offerta
  • Prezzo di listino €1,099.00


La serie DP2000 identifica un alimentatore lineare programmabile ad alta precisione. In aggiunta alle funzioni di base come low ripple e noise, veloce tempo di risposta transitorio ecc., presenta tre canali completamente isolati, alta precisione e frequenza di campionamento elevata. La risoluzione della misurazione di minima corrente raggiunge 1μA e l'accuratezza annuale è di 28μA. Dispone di display a colori touch screen, una varietà di interfacce di configurazione standard, una varietà di requisiti di test integrati.



Model

DP2031



DP2031
Max Power 222 Watt
Number of Channels 3
Rear Output Terminals Yes, for Channel 1 / Channel2
Voltage / Current per Channel CH1: 32V/3A
CH2: 32V/3A
CH3: 6V/5A (Opt. 10A)
ARB Generation Yes, min dwell time of 1 msec.
Aanalysis Real-Time Plot, Trend,Current Pulse Analysis and Datalogging
Command Processing Time 10msec.
Read-Back Resolution Current 0.1 mA (Channel 1/2)
1 mA (Channel 2)
Read-Back Resolution Voltage 1mV
Interfaces USB,RS232,LAN,Digital IO, GPIB (Optional)



Specifiche tecniche:

 DP2031: 32 V/3 A || 32 V/3 A || 6 V/5 A (10 A)[1]
• 3 electrically isolated independent channels with a maximum total power of 222 W
• 4.3-inch LCD color touch screen
• Internal series/parallel connections for CH1 and CH2
• High resolution for measurement of 1 μA low range current
• Capability to measure and display wide dynamic ranges of current
• Excellent programming/readback accuracy
• Transient response time <50 μs
• Front and rear output terminals
• 2-wire or 4-wire remote sense
• A maximum of 512 arbitrary points with dwell time down to 1 ms; various built-in basic
waveforms
• Low output ripple and noise <350 μVrms/2 mVpp
• Command processing time <10 ms
• Automatic switchover between low and high range measurement
• Timing output, energy consumption analysis (IoT), data logging and analysis
• Capability to measure the minimum of 1 ms pulse current
• Three rack-units (3U), 1/2-rack form factor
• Software control
• Over voltage, over current, and over temperature protection
• Various interfaces available: USB HOST, LAN, Digital I/O, and RS232 standard; GPIB optional[2]

________________________________________________________________________________________

Note[1]: The CH3 of DP2031 has two ranges: 6 V/5 A and 6 V/10 A (optional). When it switches to 6
V/10 A, both CH1 and CH2 switch to 32 V/2 A from 32 V/3 A.
Note[2]: The GPIB and RS232 share the same port. The optional GPIB interface can be installed in
place of the RS232 interface.
