- DL3041: single channel, DC 200 V/70 A, total power up to 450 W
- Dynamic mode: up to 30 kHz
- Adjustable current rising speed: 0.001 A/μs to 5 A/μs
- Min. readback resolution: 0.1 mV，0.1 mA

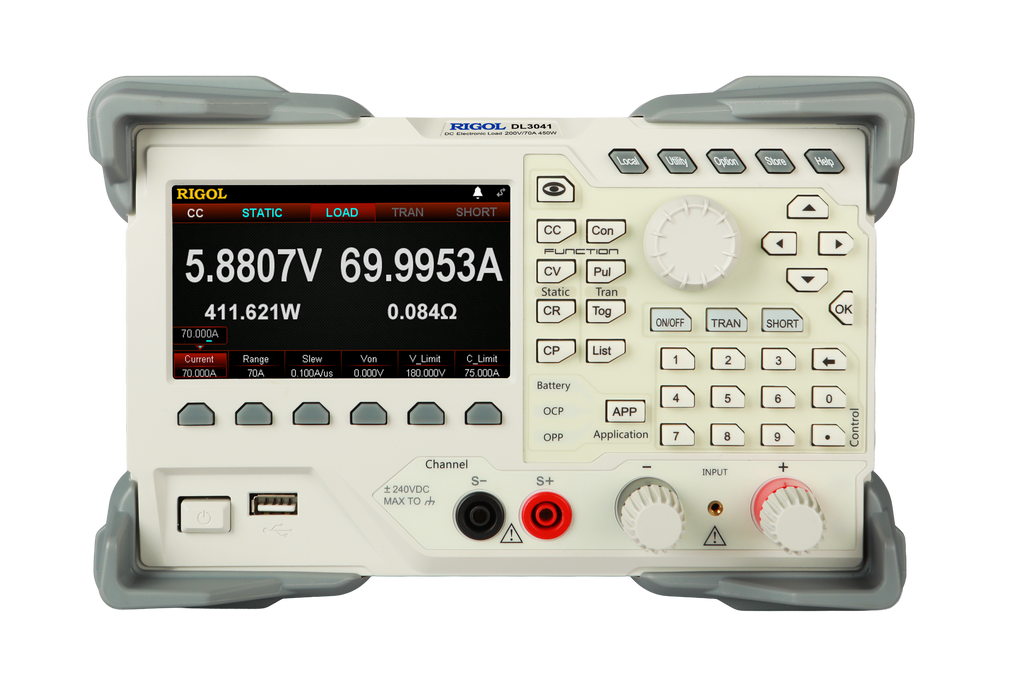

- 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
- Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
- 4 static modes: CC, CV, CR, CP
- 3 dynamic modes: continuous, pulsed, toggled
- List function supports editing as many as 512 steps
- Battery test function, OCP test, OPP test, factory test function, etc.
- Short-circuit test function
- Power-off memory function
- Built-in RS232/USB/LAN communication interface
- USB-GPIB module (optional)
| Modello | Potenza | Tensione Max | Corrente Max | Freq. Dinamica Max |
|---|---|---|---|---|
| DL3021 | 200 W | 150 V | 40 A | 30 kHz |
| DL3021A | 200 W | 150 V | 40 A | 30 kHz |
| DL3031 | 350 W | 150 V | 60 A | 30 kHz |
| DL3031A | 350 W | 150 V | 60 A | 30 kHz |
| DL3041 | 450 W | 200 V | 70 A | 30 kHz |
