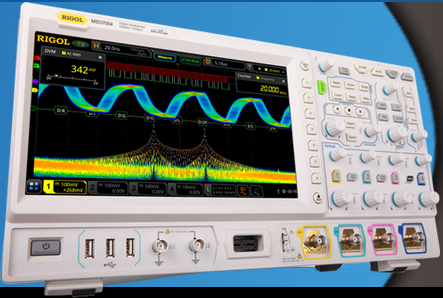

Oscilloscopio Rigol DS7024 200MHz 4Canali

  • Sconto
  • Prezzo €2,999.00


Oscilloscopio digitale, banda passante 200 MHz, 4 canali, display da 10.1 pollici touch screen , acquisizione ad oltre 600000 forme d'onda/sec.

Specifiche tecniche:

Bandwidth
 200 MHz
Analog Channels
 4
Vertical Sensitivity
 1 mV/div - 10V/div
Real-time Sample Rate
 10 GSa/s
Memory Depth
 500 Million Points
Waveform Acquisition Rate
 ≥600,000 wfms/s    (Waveforms per Second)
Interface
 Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Vertical Resolution
8 bits
Math
A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass,
HighPass, BandPass, and BandStop
Cursor Measurements
Manual, Track and Auto Measure modes
Several modes Digital Oscilloscope , Digital Voltmeter ,  High-precision Frequency Counter and Totalizer , Protocol Analyzer (Option)






Datasheet serie Rigol MSO7000/DS7000
