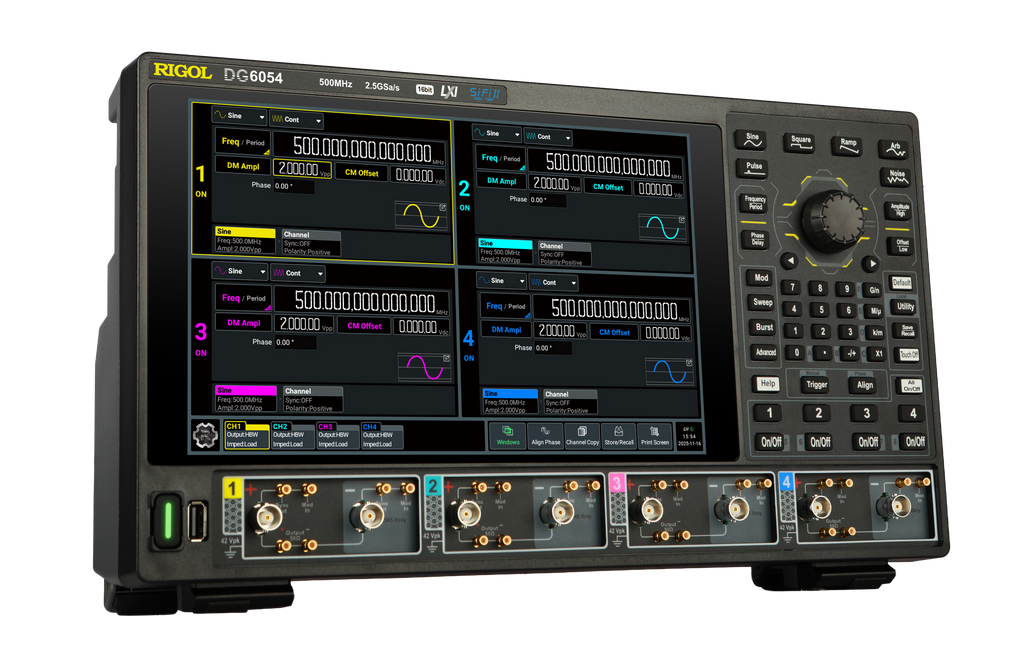

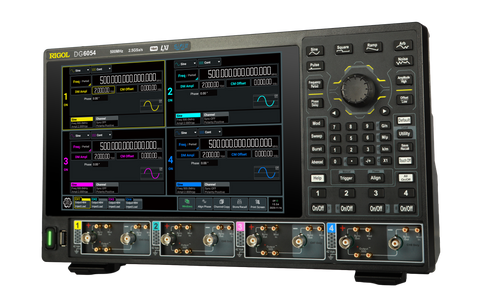

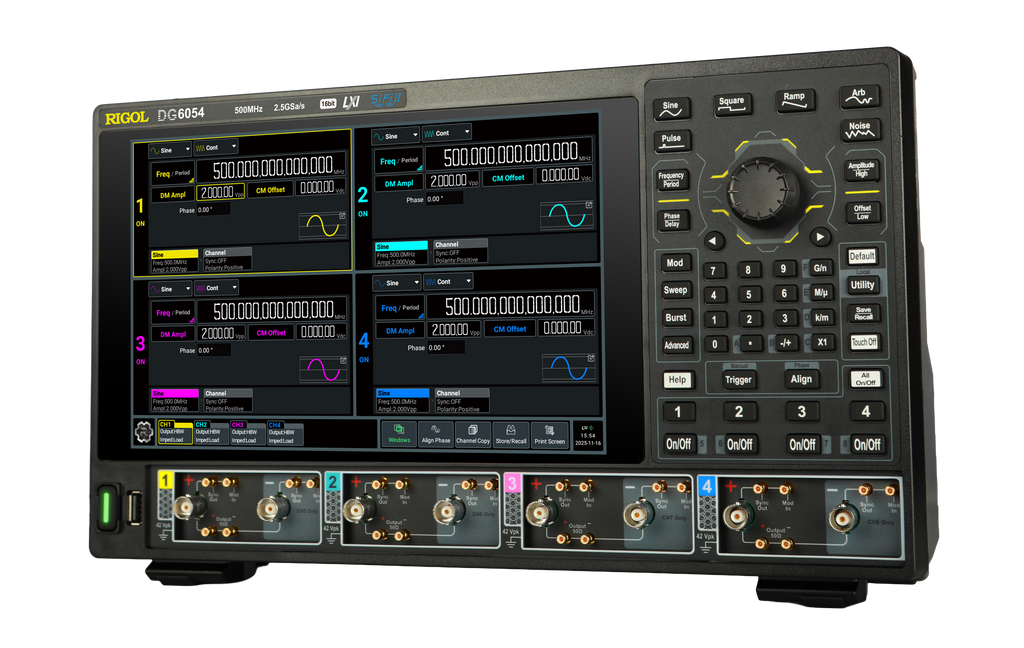

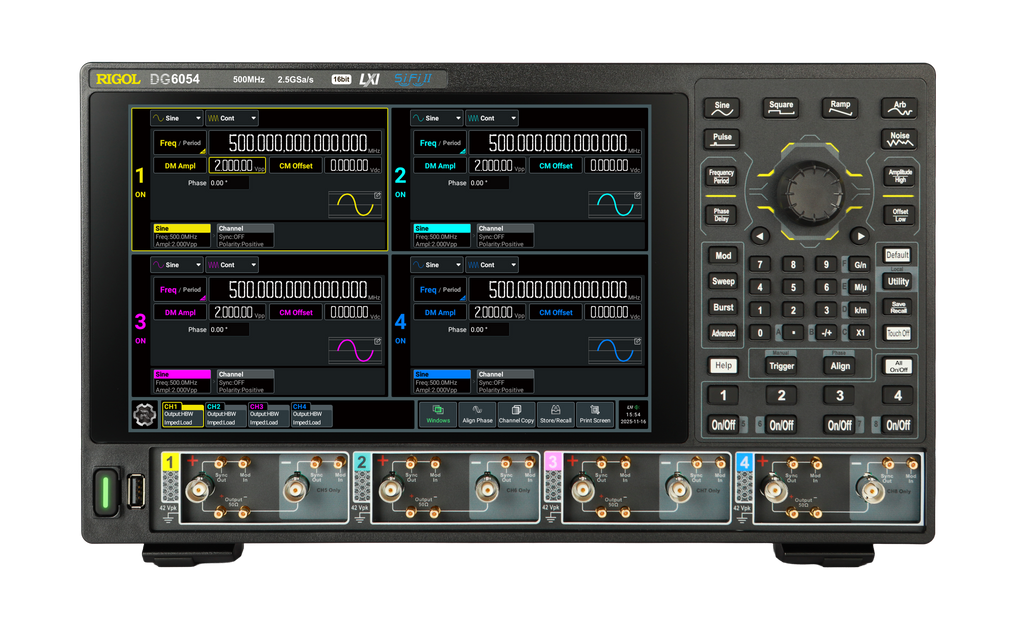

| Model | DG6054 |
| Analog Bandwidth | 500 MHz |
|
Channels
|
4 channels
|
|
Vertical Resolution
|
16 bits
|
|
Sample Rate
|
2.5 GSa/s
|
| Waveform Memory Depth |
256 Mpts/CH (standard), 512 Mpts/CH (optional) |
|
Display
|
10.1'' color touch screen |
|
Control
|
Standard Web Control function for easier remote cooperation |
|
Dimensions (W×H×D)
|
358 mm (W) x 215 mm (H) x 122 mm (D) |
DG6000 series features
• 2/4 channel models, 2/4-channel differential outputs or 4/8-channel single-ended outputs supported
• Full-channel isolation, clean signal without distortion
• Max. sample rate: 2.5 GSa/s
• Support 1 GHz bandwidth differential signal output and ±10 V high-voltage differential signal output
• Vertical resolution: 16 bits
• A maximum Arb waveform length of 256 Mpts/CH (512 Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Standard: Sequence, PRBS, Multi-pulse, Multi-tone, Pattern, IQ, and Advanced Arb
• 10.1'' color touch screen, allowing you to configure and view the waveform parameters at the same time
• Standard Web Control function for easier remote cooperation
• Built-in Arb waveform editing function or PC software Ultra Station to generate Arb waveforms
