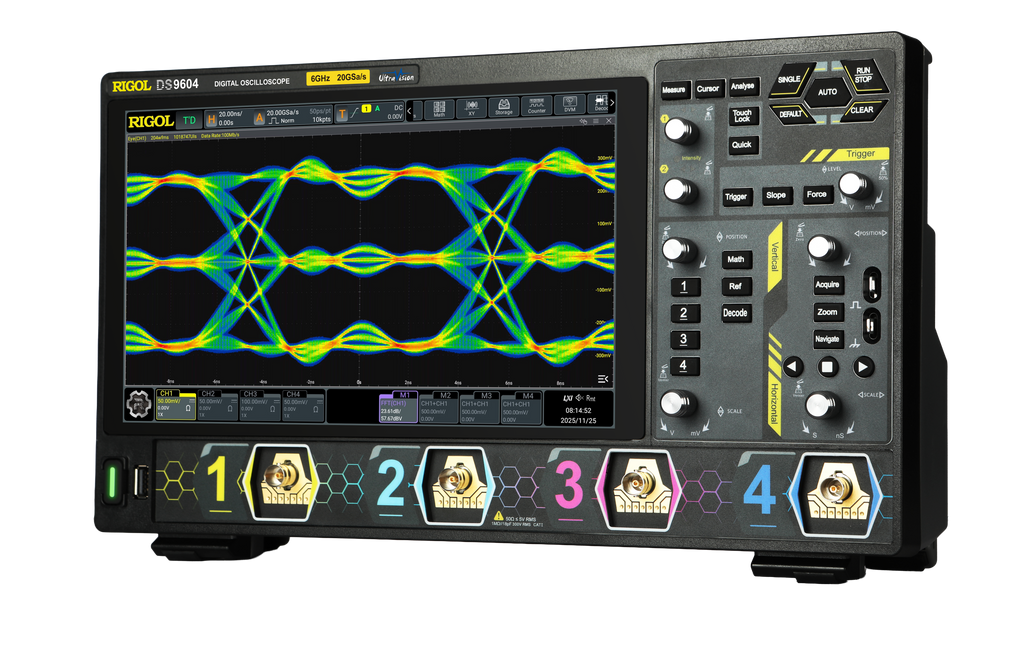

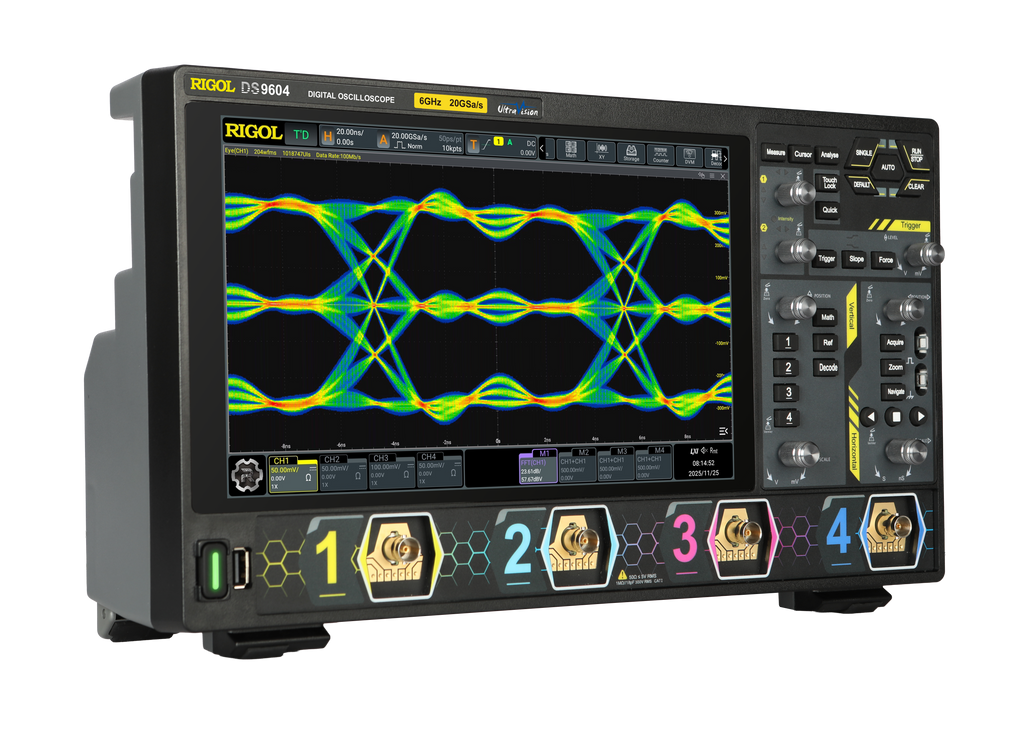

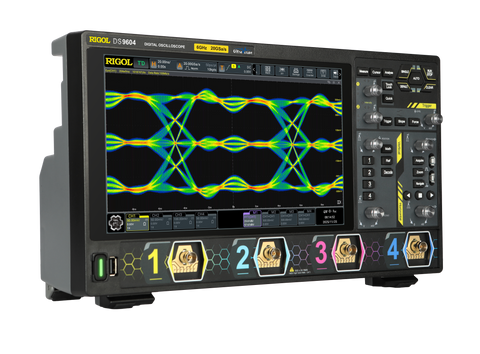

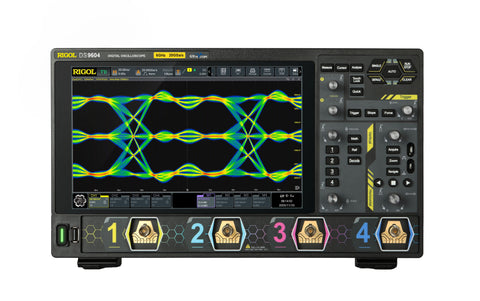

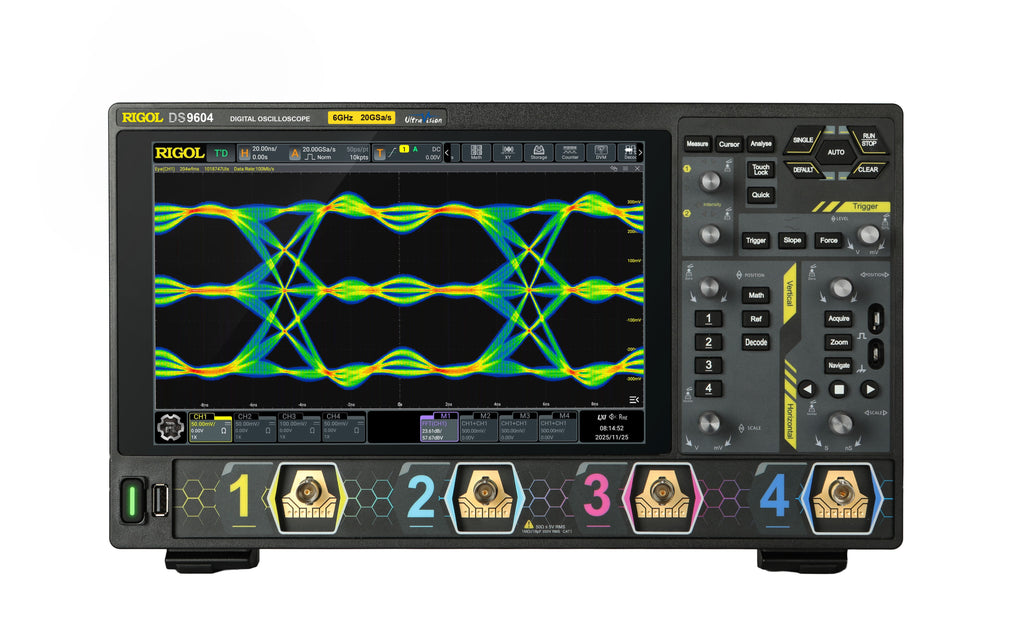

The images specifically refer to the DS9604 model
MSO/DS9000 series digital oscilloscope is designed to meet mainstream application needs indesign, debugging, and testing. Adopting RIGOL's brand-new self-developed module, the oscilloscope achieves a fast waveform capture rate of 1,000,000 wfms/s in the fast recording mode, 2 Gpts memory depth, 8 to 16-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements,
delivering an exceptional test and measurement experience.
DS9000 Series Features
• Based on RIGOL's brand new self-developed module
• Up to 4 analog channels, 1 EXT channel
• Max. 6 GHz Analog Bandwidth
• Max. real-time sampling rate of 20 GSa/s
• Max. memory depth of 2 Gpts
• Max. waveform capture rate of 1,000,000 wfms/s in fast recording mode
• Vertical resolution: 8 to 16 bits selectable
• Vertical sensitivity range: 1 mV/div to 10 V/div (1 MΩ), 1 mV/div to 1 V/div (50 Ω)
• Time base range: 50 ps/div to 500 s/div
• Up to 2,000,000 hardware real-time waveform continuously recording and playing function
• Integrates various independent instruments into 1, including digital oscilloscope, function/
arbitrary waveform generator[1], digital voltmeter, 8-digit frequency counter and totalizer, and
protocol analyzer (option)
• Comprehensive trigger and bus decoding functions: Edge, Pulse, Slope, Video, Pattern, Duration,
Timeout, Runt, Window, Delay, Setup/Hold, Nth edge, RS232, I2C, SPI, CAN, CAN-FD (option),
FlexRay (option), LIN (option), I2S (option), MIL-STD-1553 (option), SENT Decode (option)
• Search and navigation, mask testing, and zone trigger functions enable users to quickly identify
abnormal signal events and locate them accurately
• Auto measurements of 41 waveform parameters
• Supports Ethernet, Automotive Ethernet, USB2.0, MIPI D-PHY, and other protocol compliance
analysis functions (option)
• Supports multiple functions, including digital signal analysis[2], Bode plot[3], and histogram
• Supports optional real-time eye diagram, jitter analysis, and power analysis
• Multiple interfaces available: USB HOST & DEVICE, HDMI, AUX OUT, LAN(LXI), Web Control
• 10.1" 1280*800 HD touch screen display, portable design
• User-friendly Flex Knobs for a smoother, more intuitive user experience
