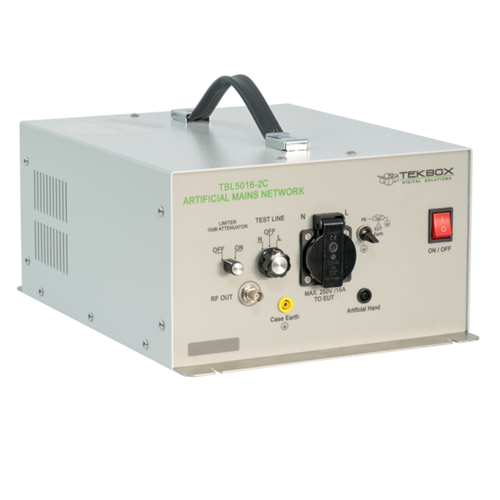

The TBL5016-2C is a Line Impedance Stabilization Network designed to measure conducted emissions on power supply lines in the 9kHz to 30MHz frequency range, as specified by the CISPR 16-1-2 standard. The device is designed for testing single phase, AC -powered equipment with supply voltages up to maximum 2 50V and 16 A. Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2C features a line selector switch, a switchable limiter / highpass filter / attenuator, a PE switch to mimic extension cables and an artificial hand connection.
The device is available with country-specific EUT connectors.
Features
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω ║ (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω ║ 50 µH
- Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
- Air core inductors
- Line voltage: max. 250V / 50/ 60 Hz or DC
- Max. current: 16A @ 23°C
- EUT socket: country specific
- Measurement connector: 50 Ω BNC
- Power connector: IEC 60320 C19
- Operating Temperature Range: +5°C to + 40°C; 5% to 80% RH
Documents:
TBL5016-2C_LISN-Manual
EMC pre compliance testing guide
EMC pre compliance conducted emission measurements
Which standard has to be applied for my product?
Application note conducted noise measurements with the Rigol EMI software S1210
